Description
The Most Advanced Oil Catch Can is Printable!

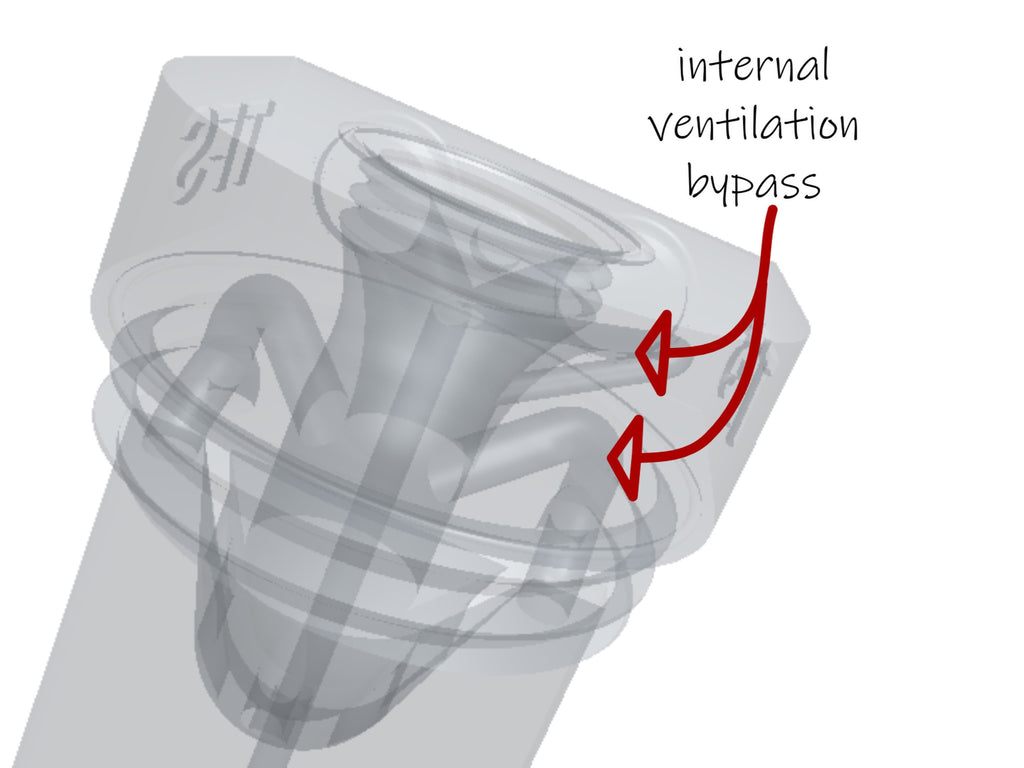

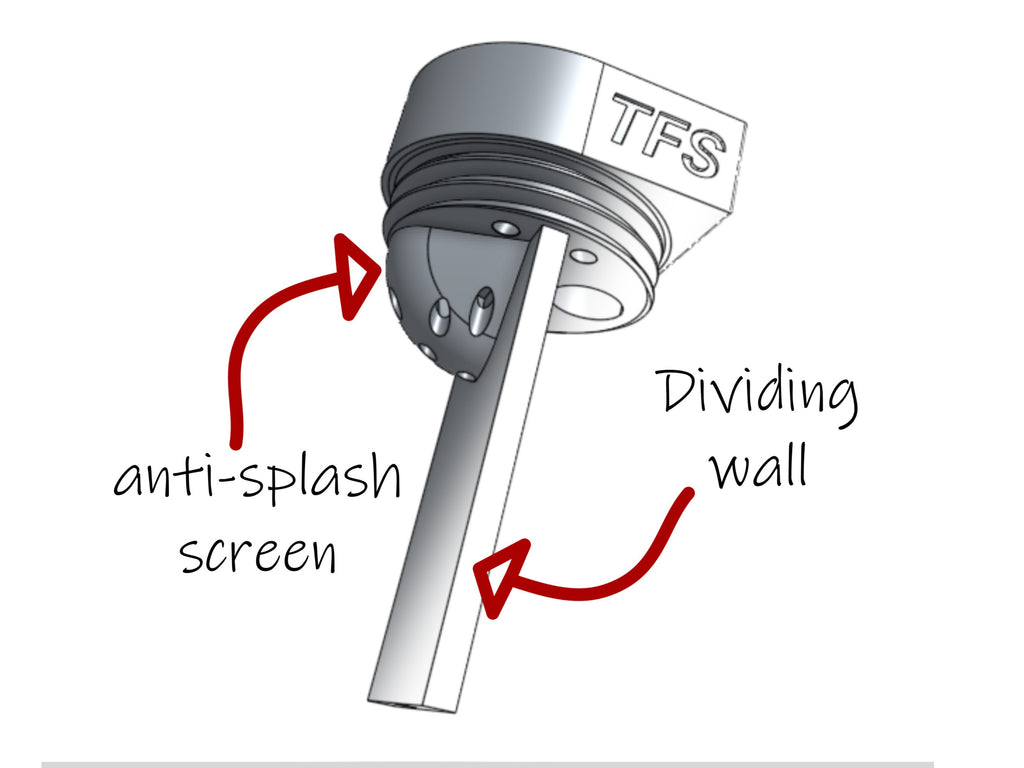

TFS Oil Catch Cans are engineered to be 3D printed using engineering filaments. Each can utilizes a proprietary design which allows the catch can to be nearly full and still allow no more than 5% of the contents of the can to spill or splash out of the top or return, even when under extreme use. Our internal bypass design directs fluids to the bottom of the can while allowing excess pressure to escape into the atmosphere OR to re-route back into the engine in a recirculating type - even when the can is overflowing back through the inlets.

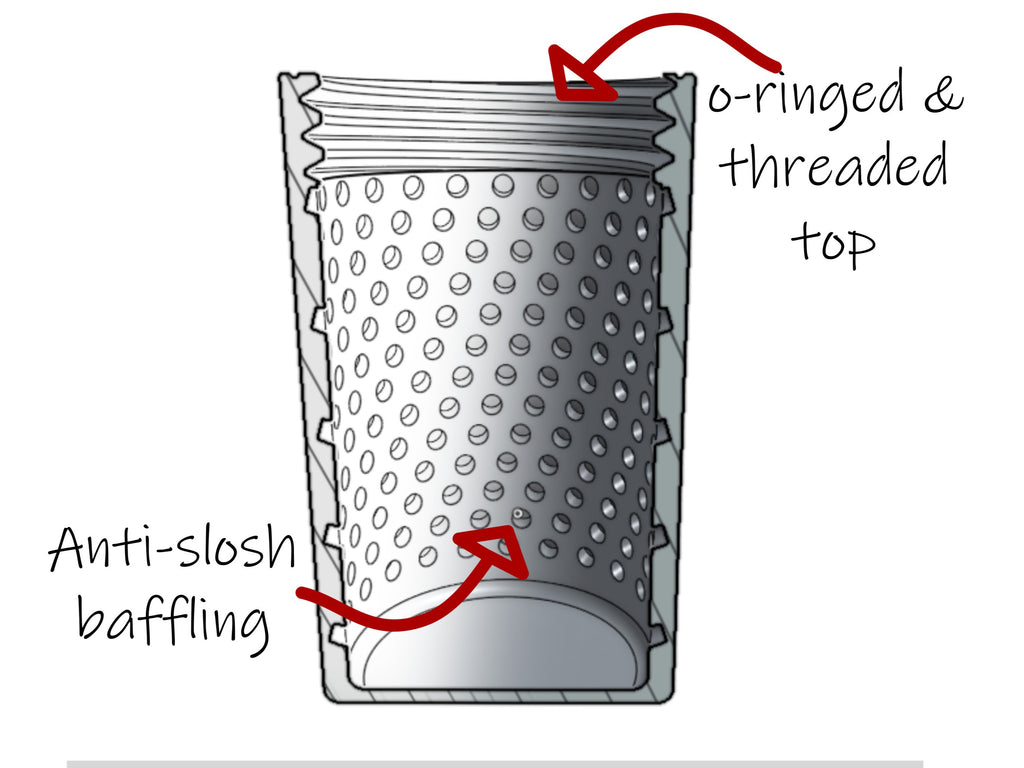

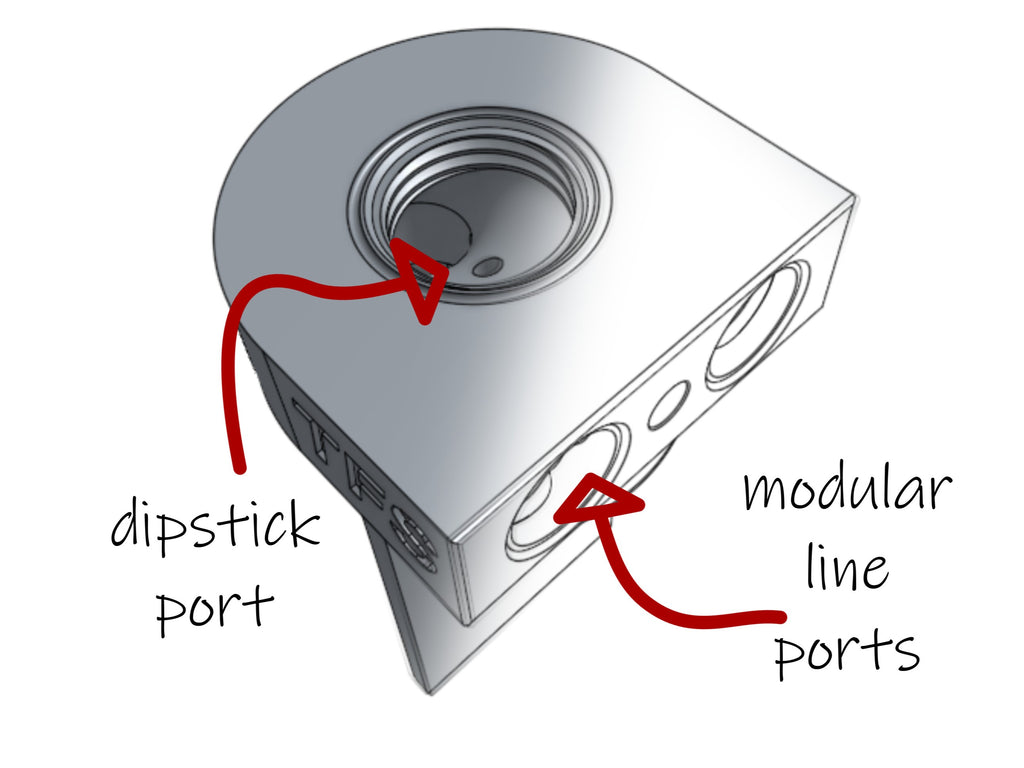

Maintenance is also easy as each can contains a threaded design which unscrews from the head of the can for tool free servicing as well as a dipstick hole in the top for easily checking fluid levels.
Our modular barb attachments allow a wide variety of hose diameters and AN fittings to be used on your build which is always a win.
And the best part? If any part fails – you can simply print the replacement!
Additional Parts needed:
- (1) Dash 038 O-ring
- (1) Dash 030 O-ring
- (2) Dash 018 O-ring
- (1) M6 x 1.0 x 6mm thread insert
- (1) M6 x 1.0 x 12mm screw (button head recommended)
- (1) M6 x 1.0 x 16mm screw (button head recommended)
- (1) M6 x 1.0mm hex nut
- Screws required for mounting the universal clamp
- Breather filter for 1-3/8 OD ports
- Hoses, clamps, and other installation tools
- 3D printer or printing service capable of printing temperature and oil resistant engineering filaments
What’s included:

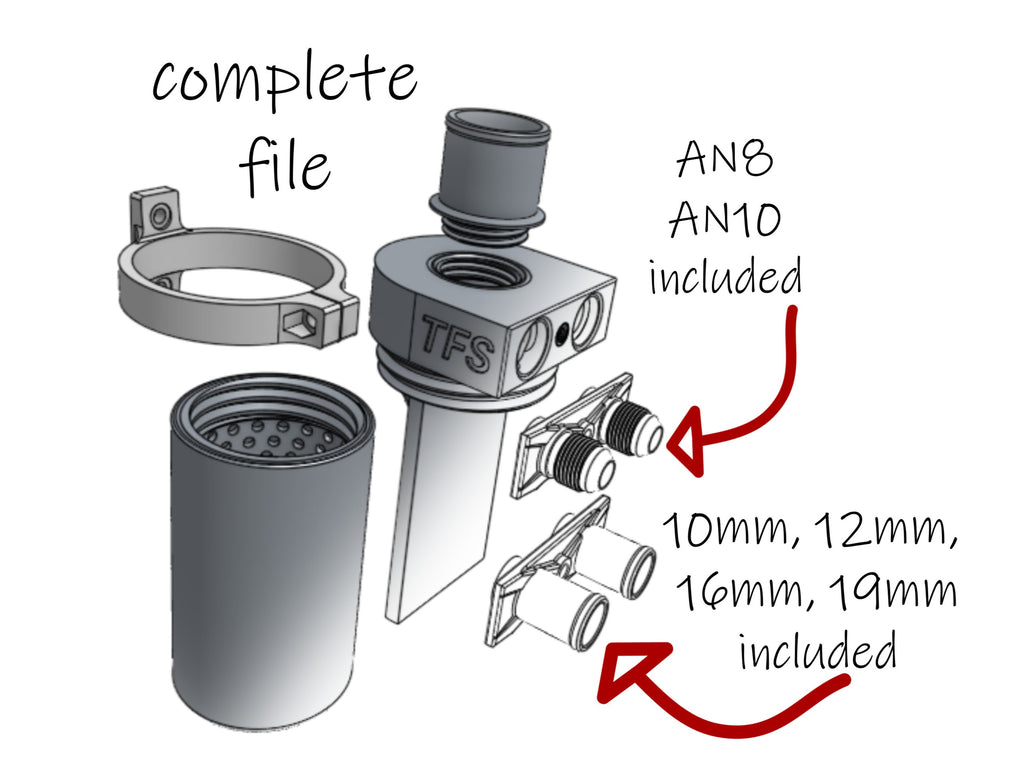

- (10) .STL files of all parts needed to 3D print your oil catch can
- Vented Baffle & Head
- Reservoir

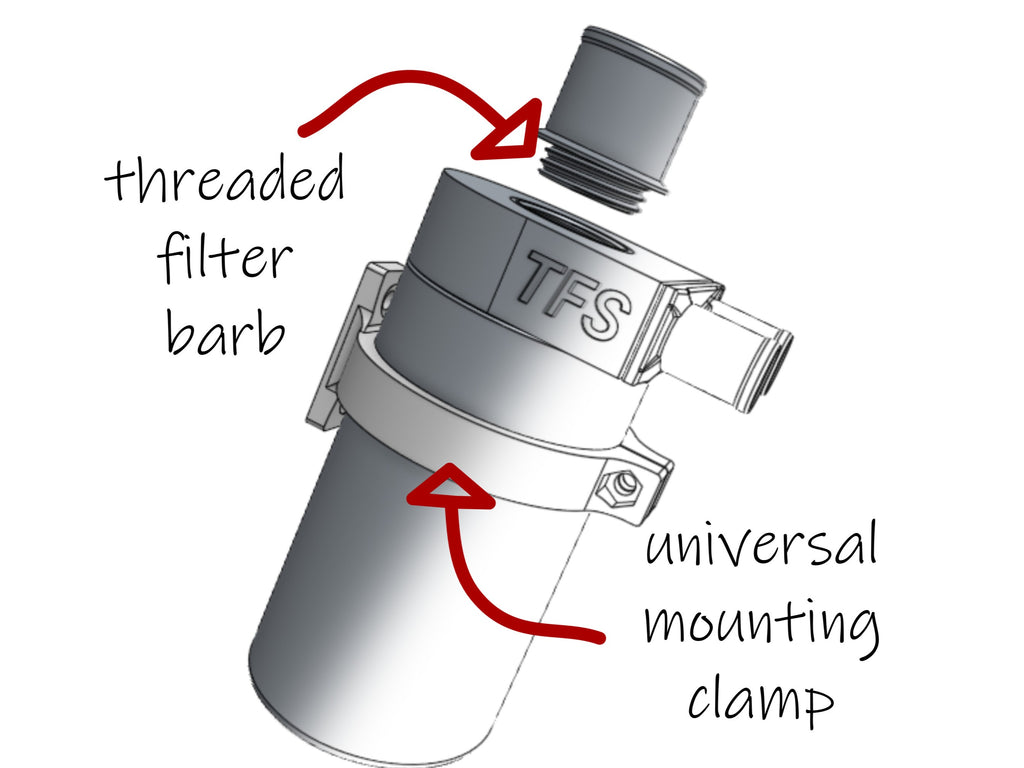

- Universal Clamp
- Filter barb for 1-3/8" clamp-on breather filters
- AN10 modular attachment
- AN8 modular attachment
- 3/4" (19mm) ID hose modular attachment
- 5/8" (16mm) ID hose modular attachment
- 1/2" (12mm) ID hose modular attachment
- 3/8" (10mm) ID hose modular attachment
Version support – If we find a problem with our file that does not allow a part to function properly, we will correct the problem and send the updated file free of charge to verified purchasers.

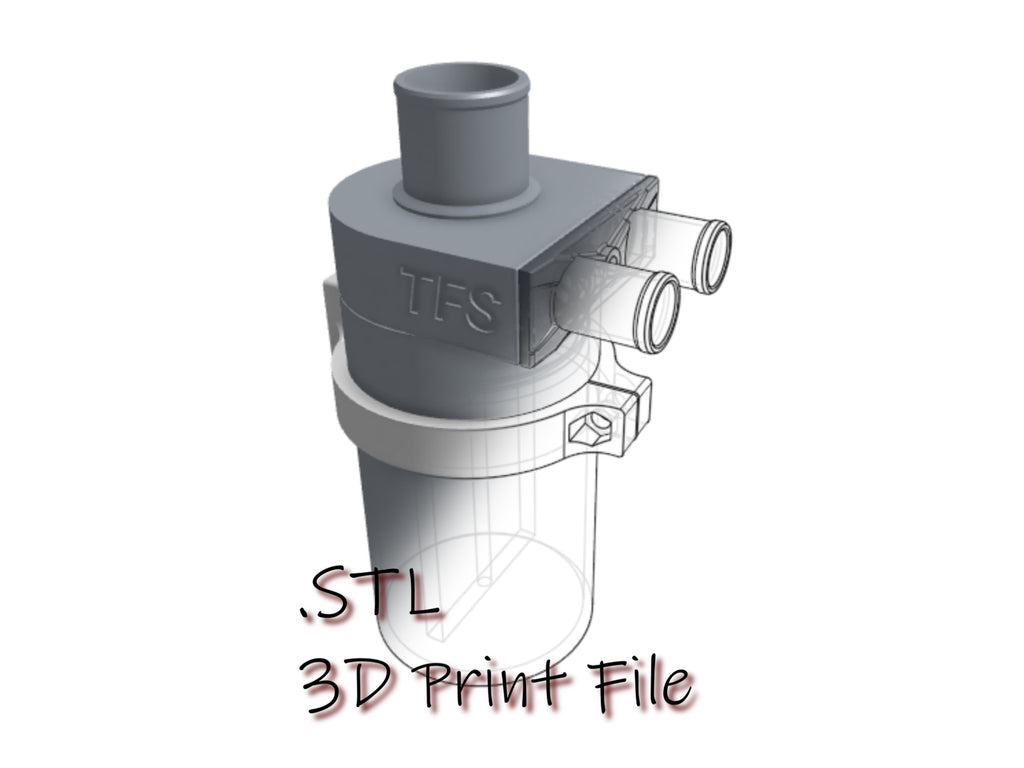

File format: STL
Unit: Millimeter
Resolution: Fine
High temperature oil resistant filament recommended! Do NOT use PLA!
NOTE: this is not a physical product. We do not print and sell this part. If you do not have a 3D printer capable of producing this part on your own, various online services will be able to print it for you.
For non-commercial use only. Sharing or re-posting of files for sale, or selling of the final printed product as a product for monetary or financial gain is strictly prohibited and will be enforced. Please contact us for licensing if you wish to print and sell our product.
